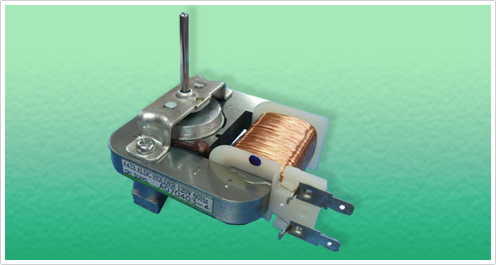

Application : Microwave Oven etc. |
|
|
Power
Source
|
AC 100V, 220-240V 50/60 Hz |
| Pole
|
2P |
No Load
Characteristics
|
50
Hz |
60Hz |
Unit
|
Current |
0.25 |
0.18 |
A + 15% |
Input |
12.5 |
9.5 |
W + 15% |
Speed |
2,600 |
3,100 |
RPM Min. |
Starting
Torque |
70 |
70 |
V Max. |
Rated
Load Characteristics |
Ø
109mm Fan (After 5 Min. aging) |
Current |
0.25 |
0.21 |
A + 15% |
Input |
14.4 |
12.6 |
W + 15% |
Speed |
2,300 |
2,350 |
RPM Min. |
Starting
Voltage |
75 |
75 |
V Max. |
Stall
Torque |
70 |
58 |
g.cm |
Starting
Torque
|
54 |
45 |
g.cm |
Rated
Torque
|
48 |
57 |
g.cm |
Output
|
1.1
(2,300 RPM)
|
1.3
(2,303 RPM)
|
W |
Insulation
Resistance
|
100
㏁ at DC 500V |
Temperature
Rise at rated load
|
Winding
: 65 ℃ Max.
Core : 65 ℃ Max. |
Insulation
Grade
|
E-Grade |
|
|
|
